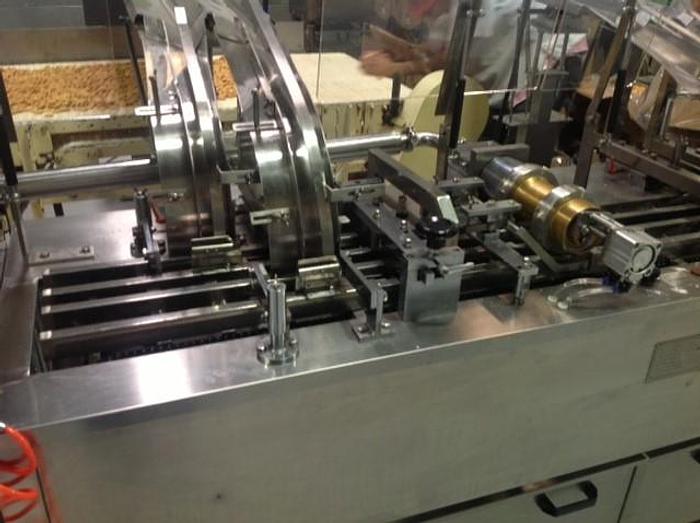

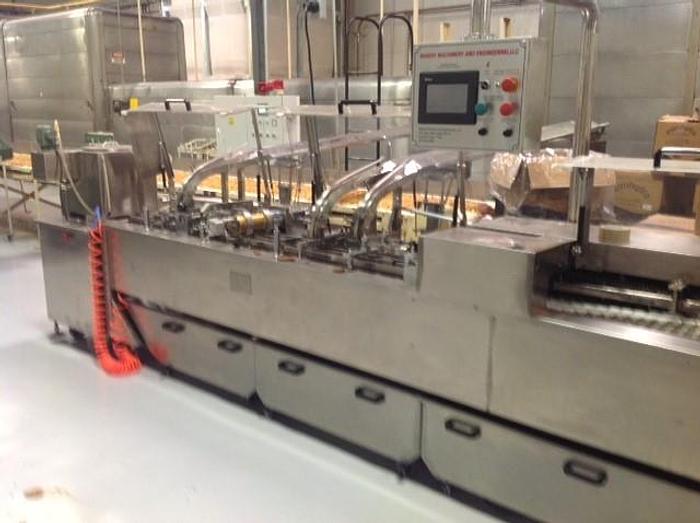

BME 2 Row Sandwich Machine

2 Rows Sandwiching Machine Includes:

1)     2+1 2 Rows Sandwiching Machine

2)     Main machine controlled by motors, PLC and stainless-steel touchscreen system, easy change head for different cookie shapes.

3)     Automatic detection unit.

4)     Cookie double chain pusher.

5)     Stainless Steel complete design and parts in contact with product not painted.

Sandwiching Machine Parameters:

Sandwich Size

Round: Φ40mm-Φ70mm

Square: L: 40mm-80mm W: 40mm-70mm

Thickness: 4mm-8mm

(Note: Special design can be manufactures on client´s specifications.)

Capacity

Max:300 - 600pcs per row

Driving side

Left to Right

Sandwich Feeding

Feeder

Voltage

220V 60Hz

Weight

1200kgs

Power

7.5kw

Energy Parameters:

1)     Cream feeding system with independent motor and drive.

2)     Cream hole can be removed from machine for good cleaning.

3)     Stainless Steel cream hole and double blade mixer.

4)     Engine transmission box.

5)     Stainless steel pump, cream injector and spare parts.

Double jacketed temperature control system box
